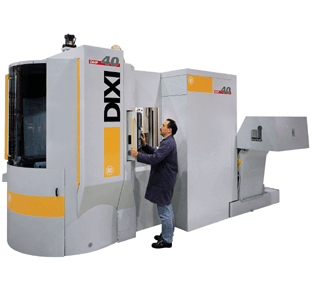

| Description DHP-40 | Inch / Metric |

|
X, Y, Z, axes stroke |
19.68 x 19.68 x 19.68 in 500 x 500 x 500mm |
 | ||
|
Maximum Workpiece size(Diameter x Height) |
23.62 x 23.62 in 600 x 600 mm | ||||
| Rapid Traverse X, Y, Z |
2362 in/min 60 m/min | ||||
| B - Axis with Torque Motor | 50 RPM | ||||
| Pallet size |
15.75 x 15.75 in 400 x 400 mm | ||||
| Permissible pallet load |
883 lbs 400 kg | ||||
| Spindle RPM |
12,000 RPM | ||||
| Spindle HP |
33.5 HP / 25 KW | ||||
| Spindle RPM Optional | 24,000 RPM | ||||
| Spindle HP | 18.23 HP / 13.6 KW | ||||
| Spindle Tapers standard | Cat 40, Big-Plus, HSK A63 | ||||
| Number of pallets | 2 | ||||
| FMS or FPC pallet Storage systems | Optional | ||||
| Number of Tools in ATC | 65 / 115 / 170 / 220 | ||||
| X, Y, Z Measuring Systems | Independent | ||||
| CNC Control | Fanuc 16i MA, Siemens 840 D |
